Reflective Screen
ARCH: 563 FALL 18
PROFESSOR: MARTINA DECKER
The Reflective Screen creates stable reflections of daylight into the interior during the winter and summer seasons. The screen prevents unpleasant glares (direct sunlight into eyes) on the south side. The Screen uses shape memory alloy to automatic move and adjust based on the seasonal temperature.

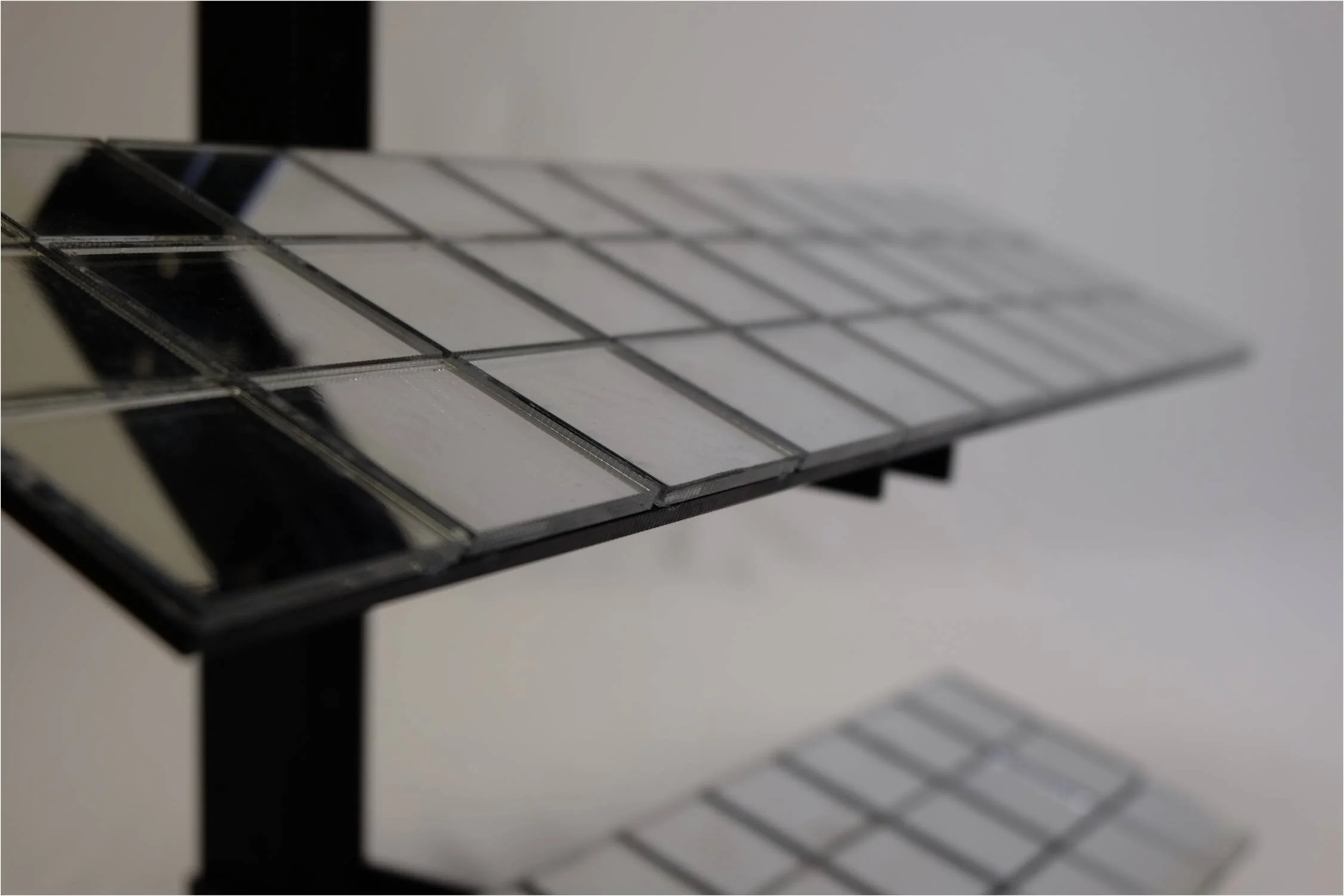

Screen Design

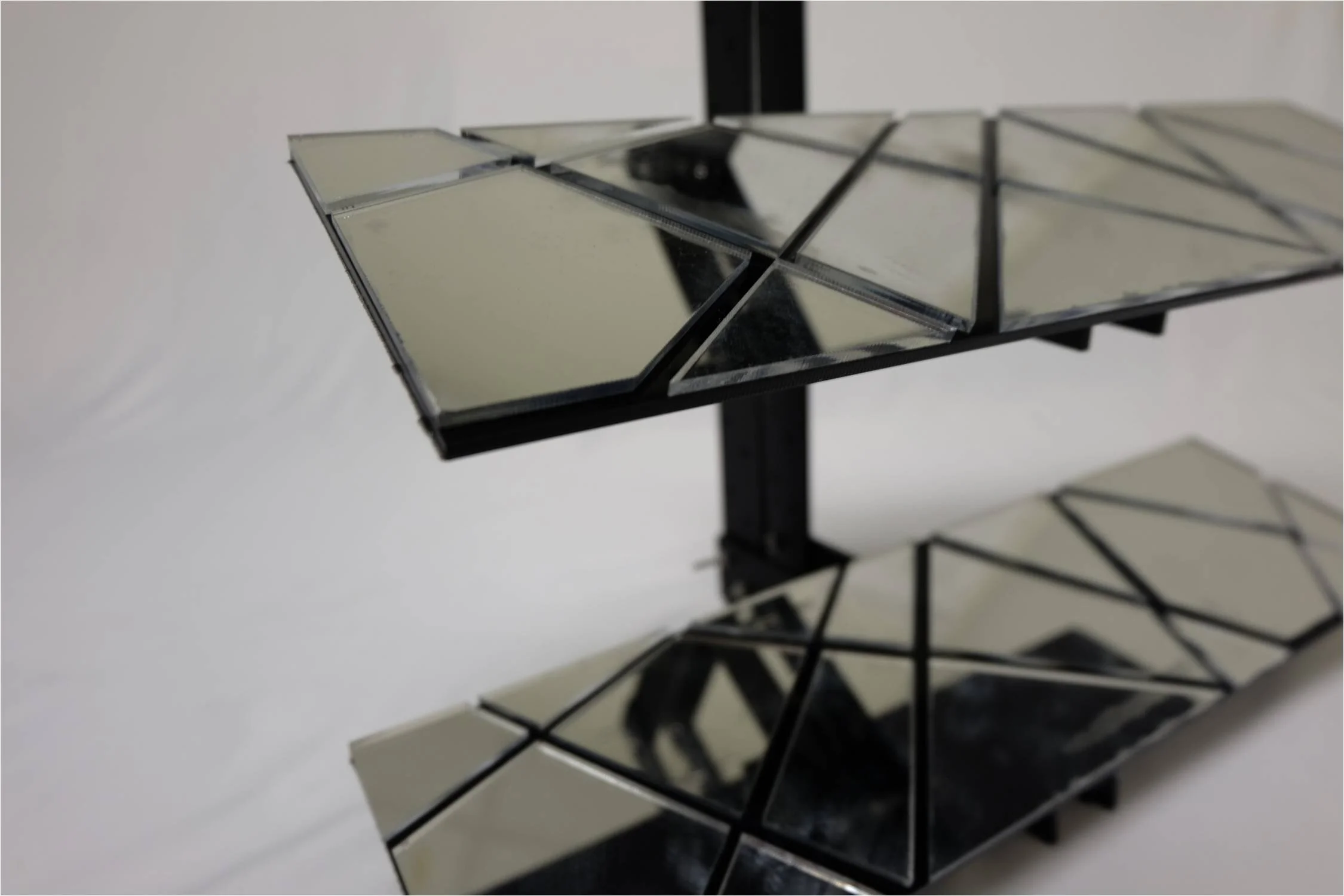

Alternative Screen Design

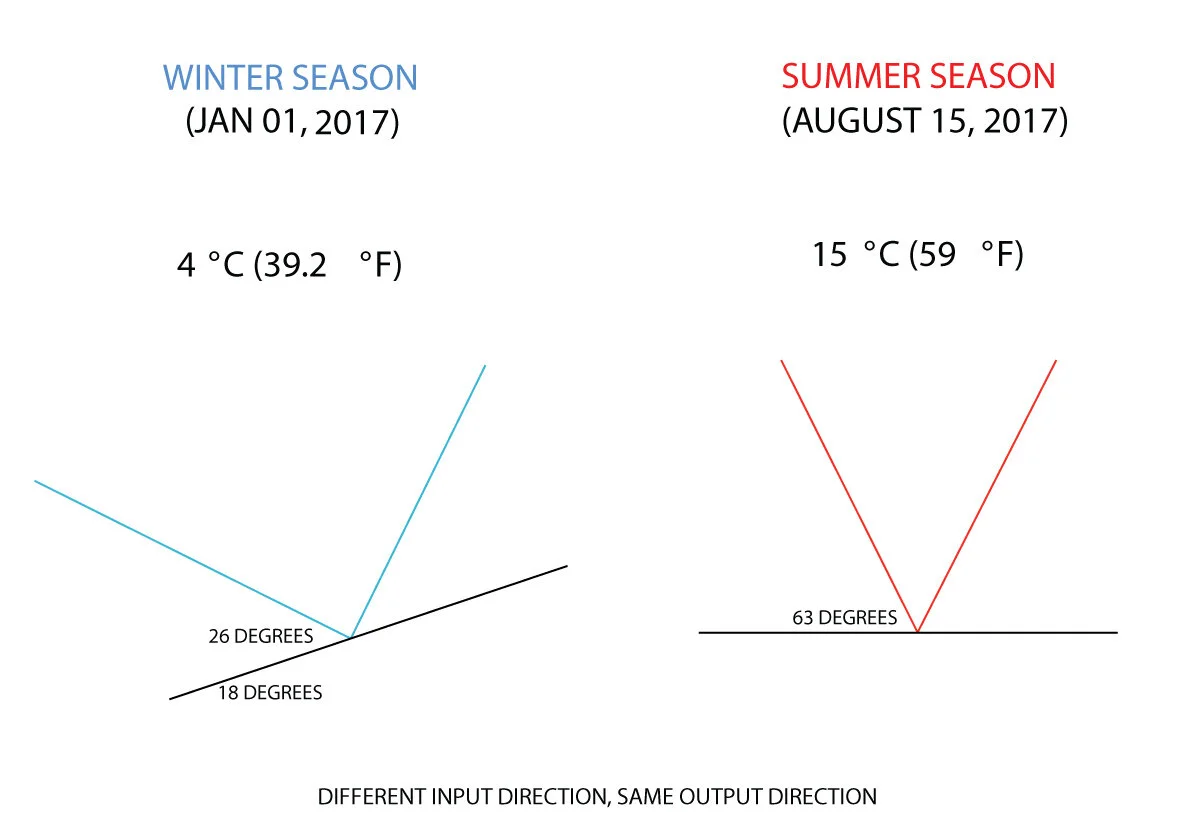

Panel Position for Newark New Jersey Temperature

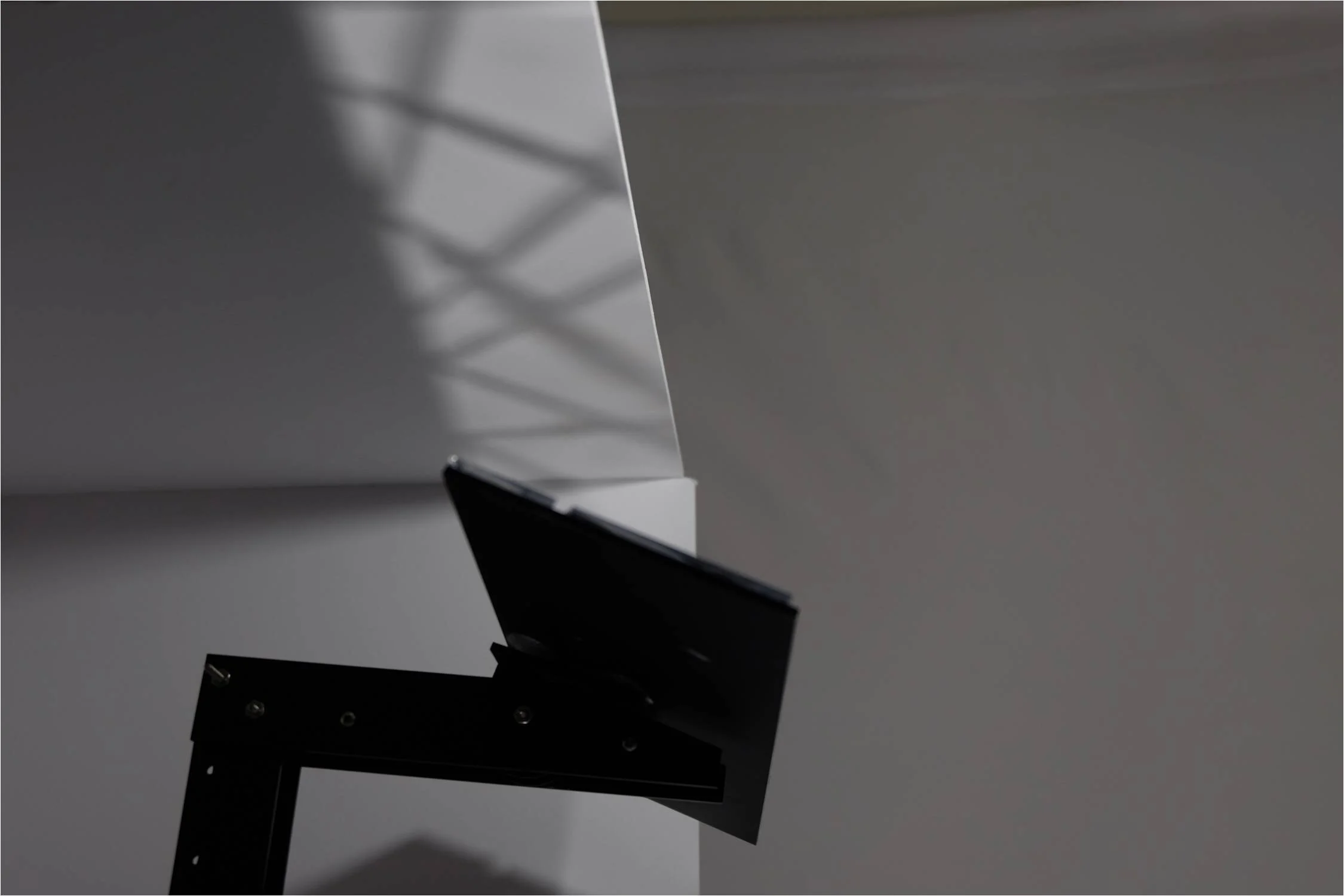

Screen Prototype Section

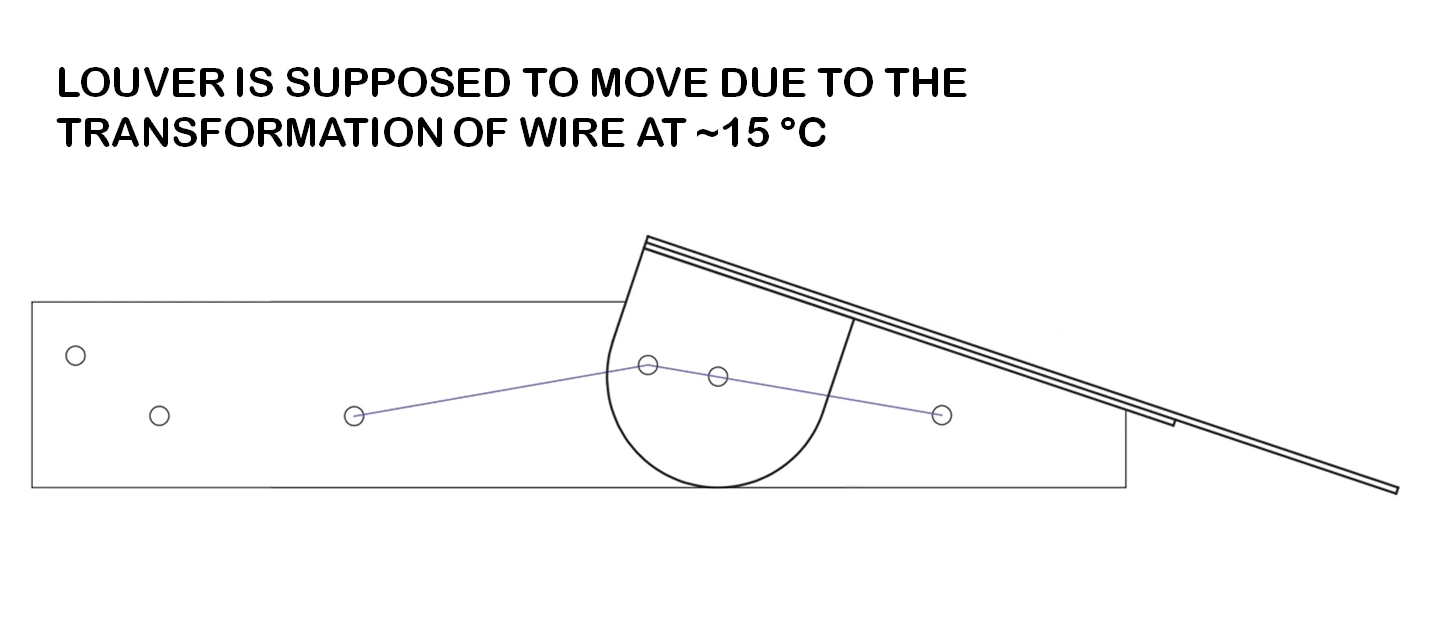

Louver

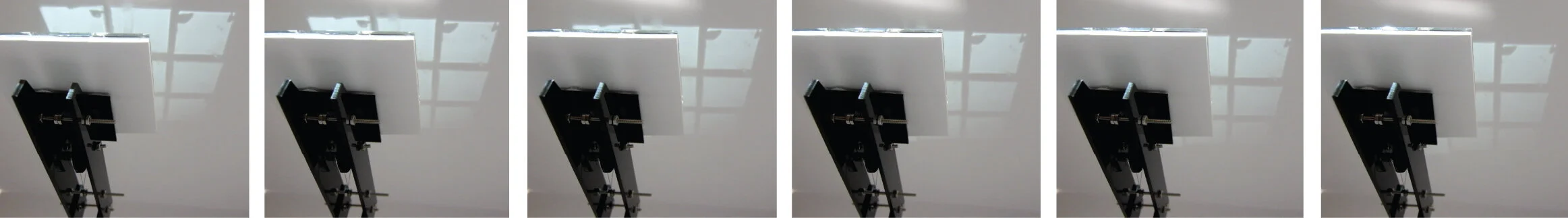

Screen Reflection over Time

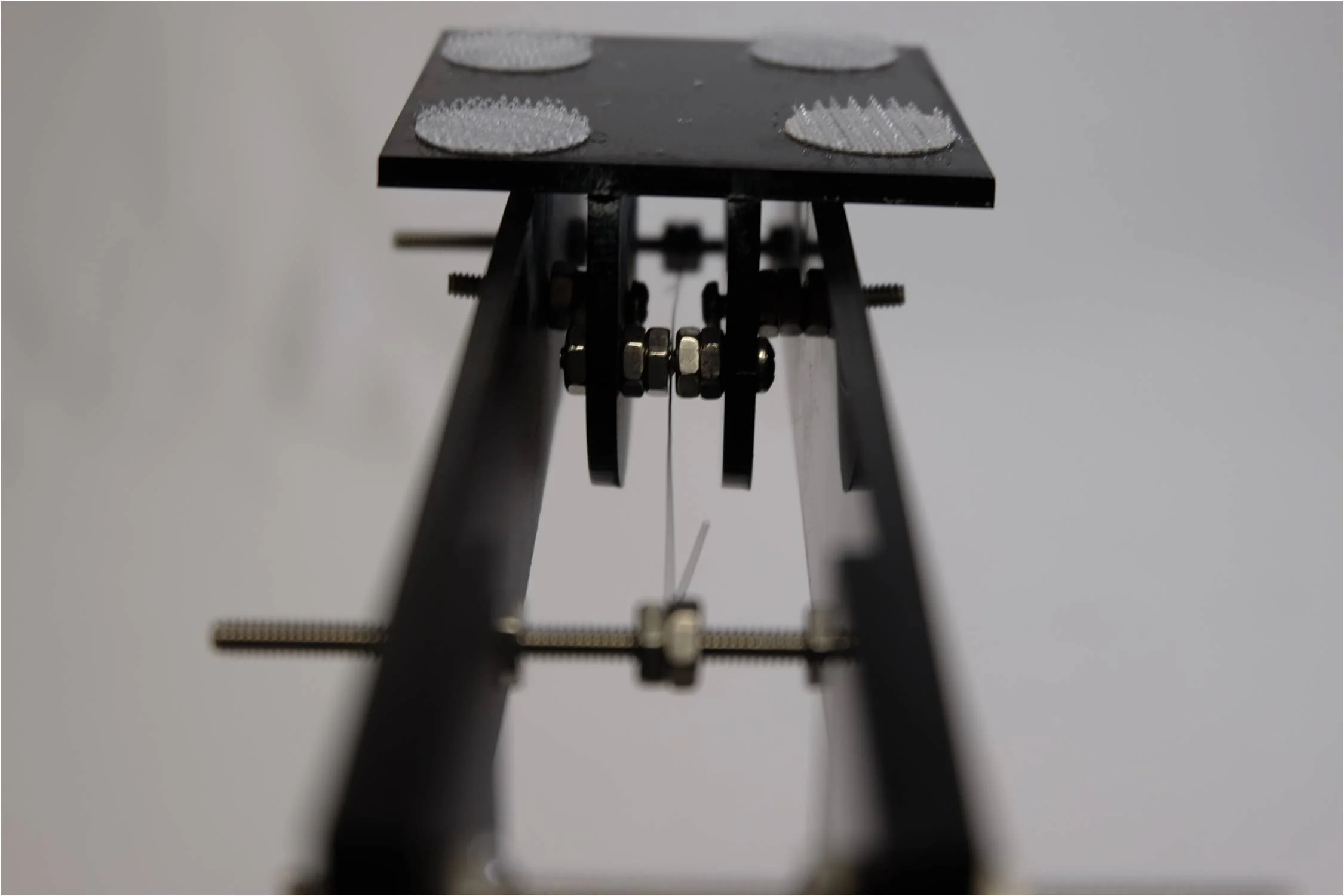

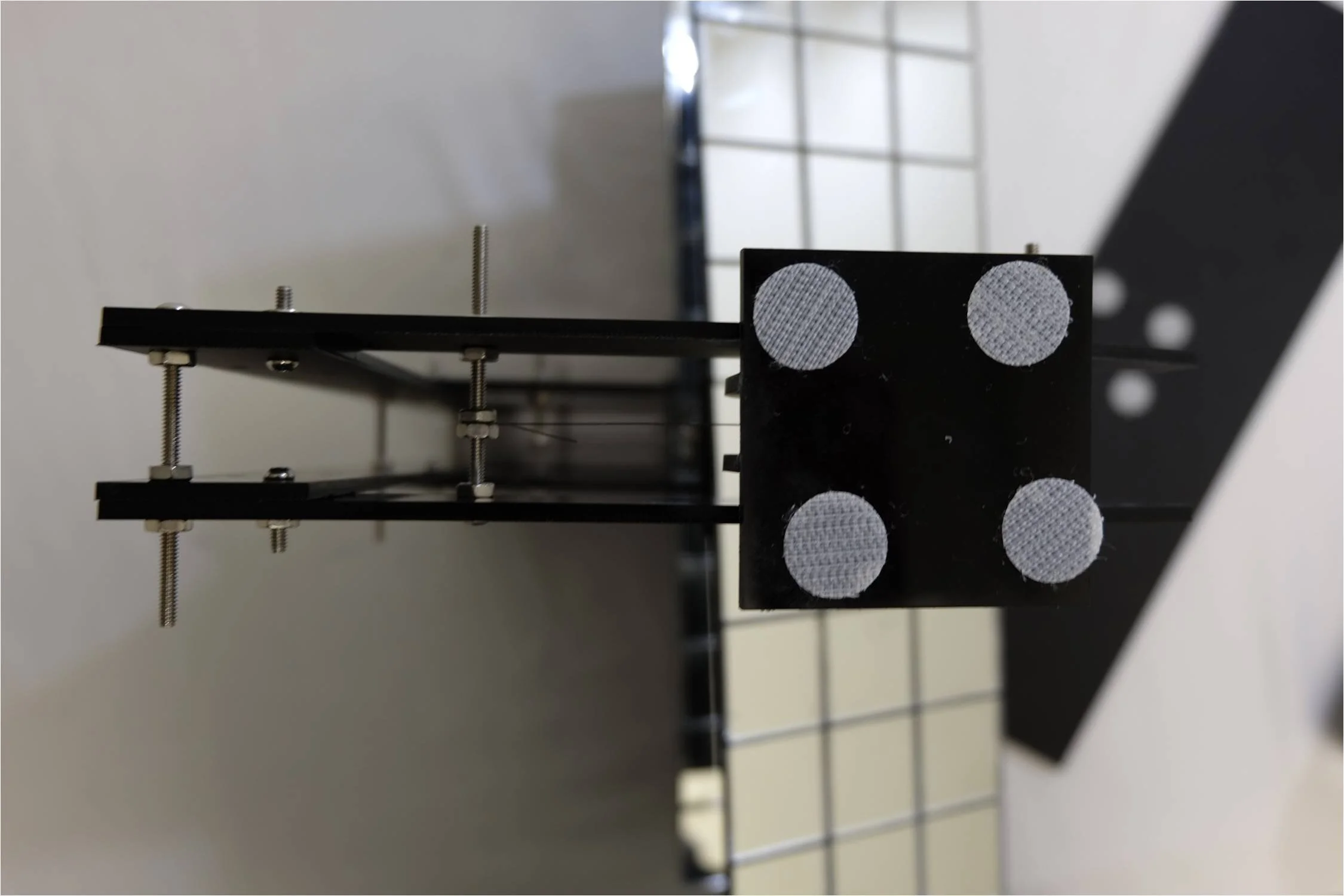

Actuator
